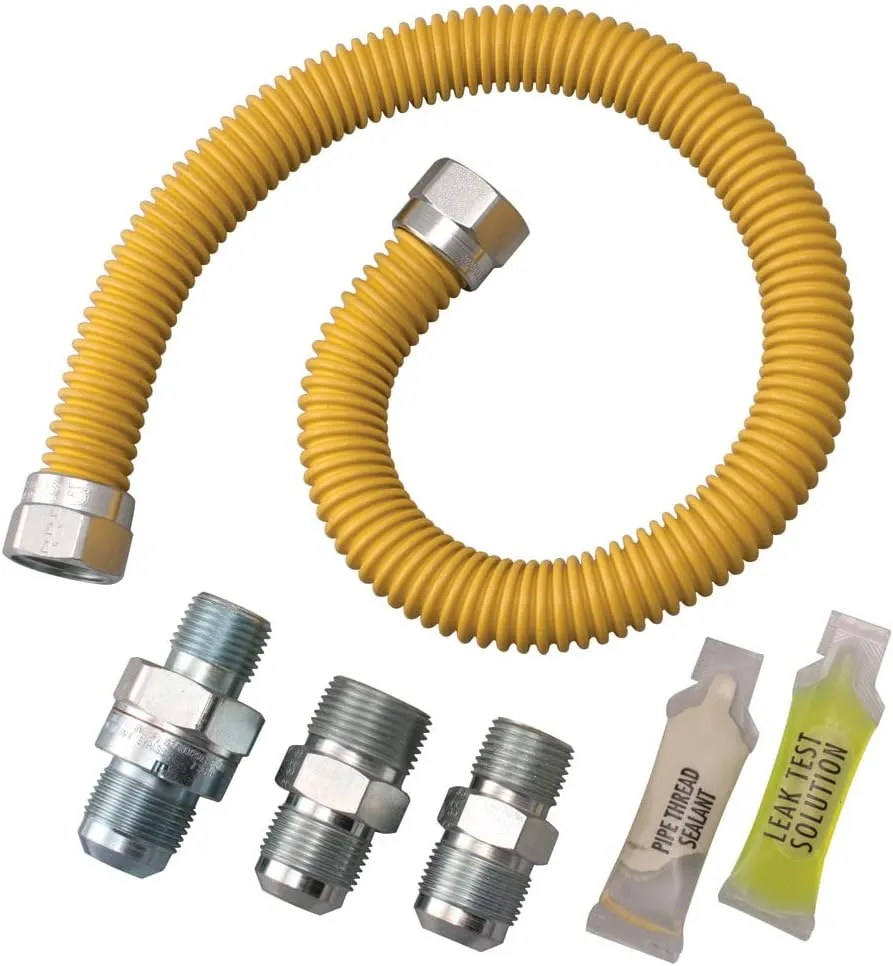

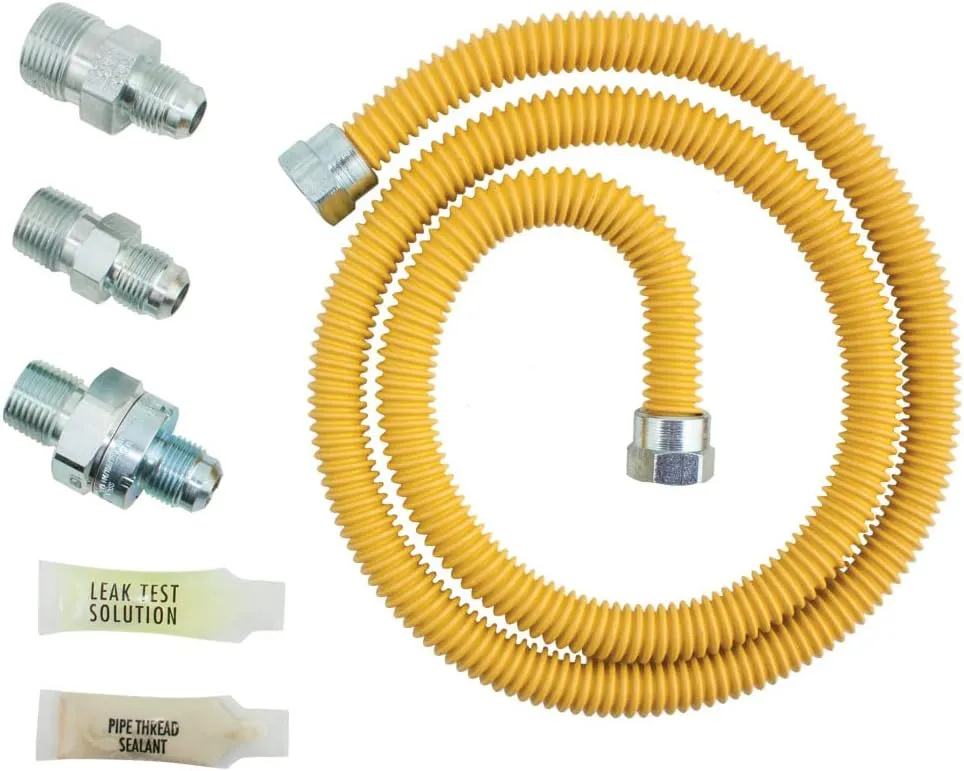

- SMARTSENSE GAS CONNECTOR KIT: The Dormont SafetyShield Gas Connector SmartSense Kit is designed to provide the ultimate protection against gas-related fires and explosions. This comprehensive kit includes a SafetyShield gas connector with bright, industry-recognized yellow powder coating, SmartSense EFV (Excess Flow Valve) and TS (Thermal Shutoff) adapters, thread sealant, and leak solution. This item comes in a bag.
- VERSATILE APPLICATIONS: Designed and certified by CSA to ANSI Z21.24/CSA 6.10, ANSI Z21.75/CSA 6.27, and ANSI Z21.93/CSA 6.30 for indoor and outdoor use, the gas connector is commonly used for the installation of home appliances using natural gas or propane, such as gas ranges, furnaces, grills, ovens, and cooktops.
- RESISTANT MATERIAL: Made from high quality 304 stainless steel, the included gas connector features a premium coating to inhibit growth of pathogens, improve corrosion and UV protection, and enhance flame and smoke resistance. Each 100% factory leak tested gas connector with adapters has a temperature rating of -40° F to (-40° C) to 150° F (65.5° C). It has an outer diameter of 5/8-inch, an inner diameter of 1/2-inch, and a length of 60 inches.

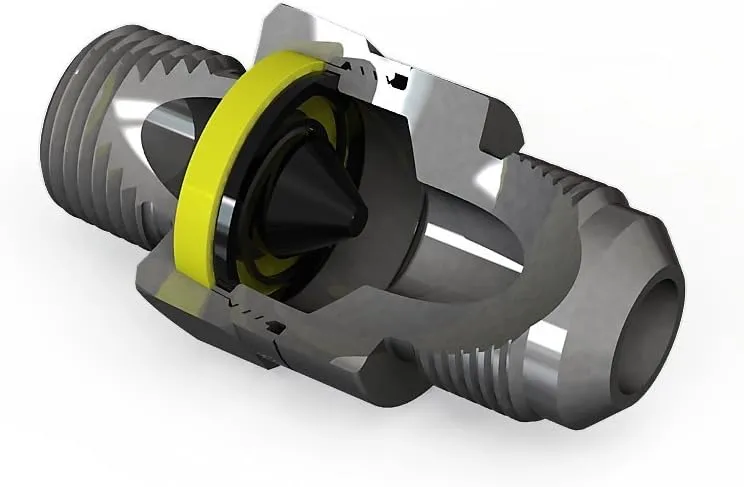

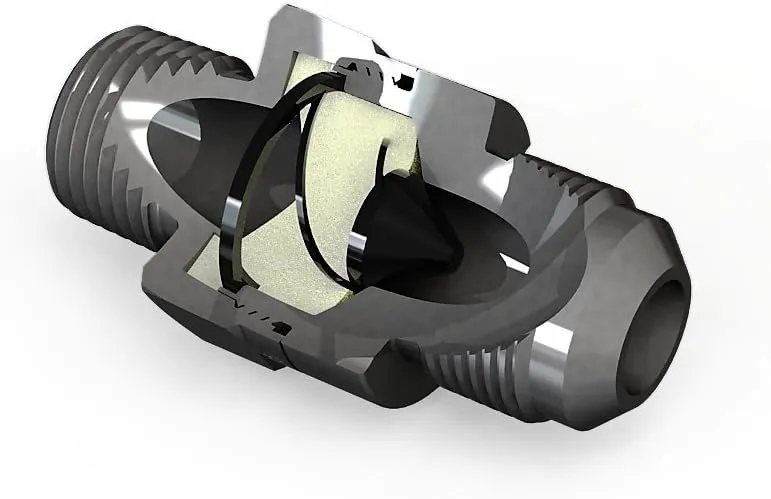

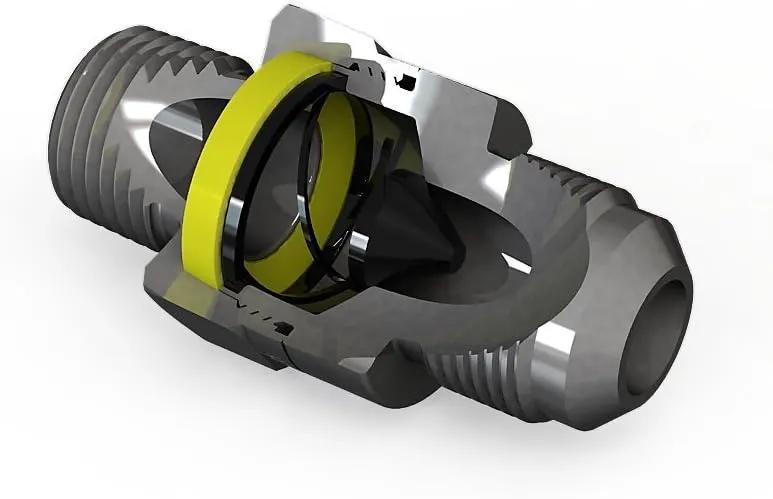

- HIGH PROTECTION LEVEL: SmartSense is an intricately-designed valve comprised of a gas flow-limiting plunger and thermal shutoff sensing ring providing excess flow limiting and fire safe shutoff. The plunger limits gas flow in the event of a connector rupture or disconnect and then automatically resets, while the thermal ring expands to stop gas flow when the valve reaches 350° F to 425° F.
- RELIABLE GAS SOLUTIONS: For over 70 years, Dormont has helped thousands of customers enjoy the peace of mind that comes from high-quality, readily available products they can rely on. As the inventor of the first moveable gas connector, our USA-based factory solely focuses on making the best. You can rely on their performance because every single one of our products is leak tested and manufactured according to ISO standards.
The Dormont SafetyShield Gas Connector SmartSense Kit is designed to provide the ultimate protection against gas-related fires and explosions. This comprehensive kit includes a SafetyShield gas connector with bright, industry-recognized yellow powder coating, SmartSense EFV (Excess Flow Valve) and TS (Thermal Shutoff) adapters, thread sealant, and leak solution. This item comes in a bag.
Designed and certified by CSA to ANSI Z21.24/CSA 6.10, ANSI Z21.75/CSA 6.27, and ANSI Z21.93/CSA 6.30 for indoor and outdoor use, the gas connector is commonly used for the installation of home appliances using natural gas or propane, such as gas ranges, furnaces, grills, ovens, and cooktops.
Made from high quality 304 stainless steel, the included gas connector features a premium coating to inhibit growth of pathogens, improve corrosion and UV protection, and enhance flame and smoke resistance. Each 100% factory leak tested gas connector with adapters has a temperature rating of -40° F to (-40° C) to 150° F (65.5° C). It has an outer diameter of 5/8-inch, an inner diameter of 1/2-inch, and a length of 60 inches.

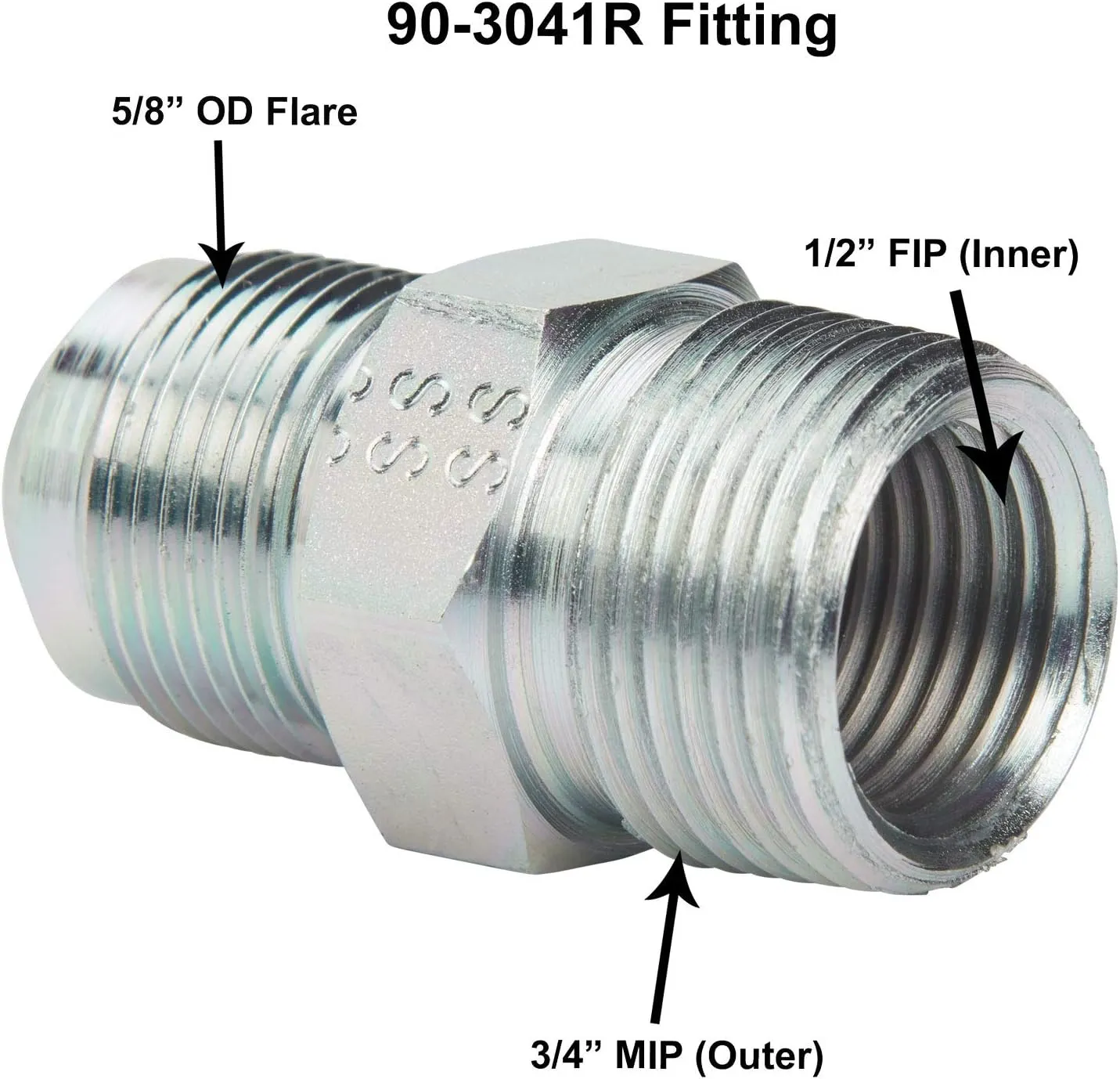

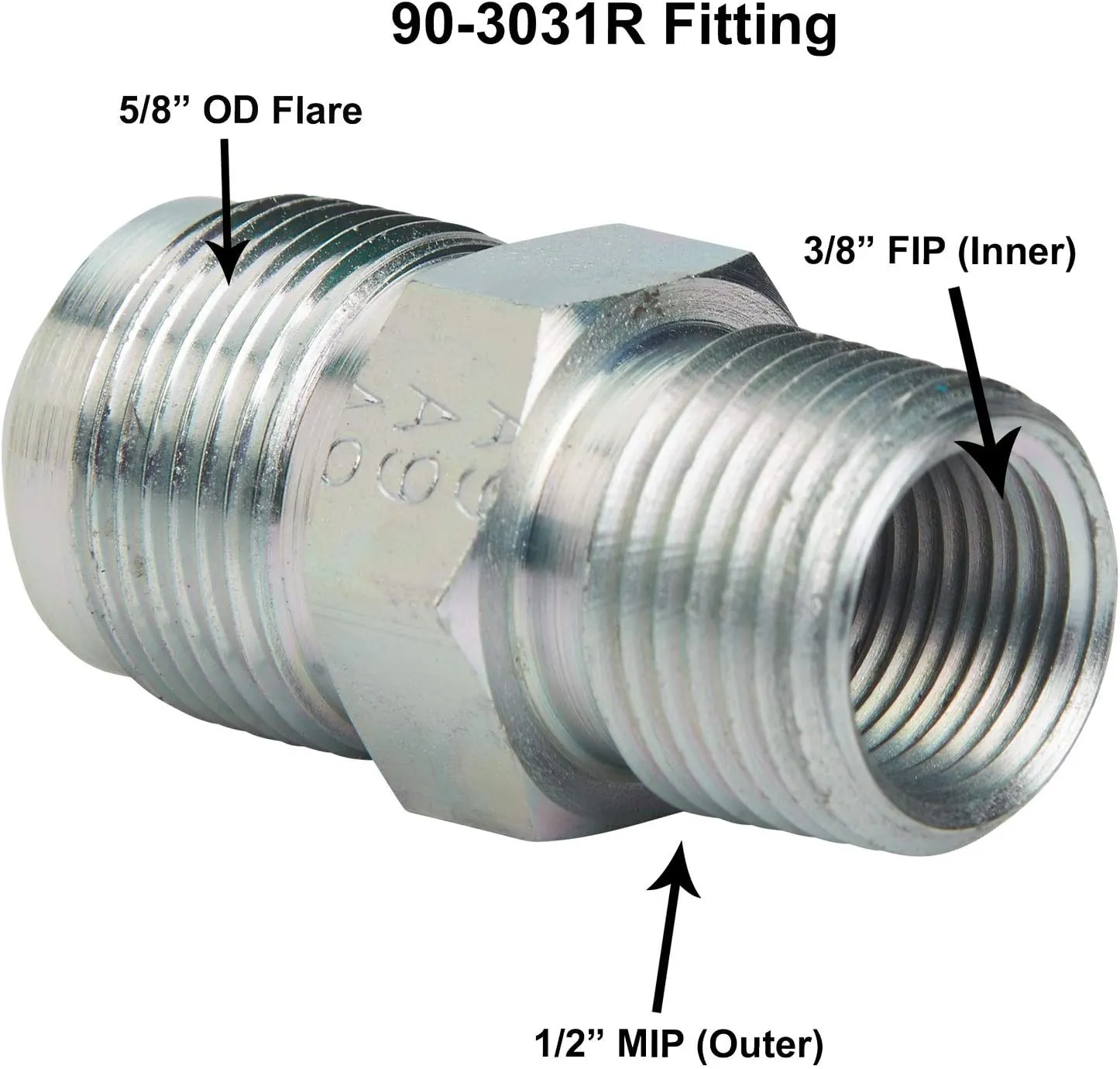

This kit includes 1/2-inch MIP x 3/4-inch MIP x 1/2-inch MIP SmartSense EFV and TS adapters. SmartSense is an intricately-designed valve comprised of a gas flow-limiting plunger and thermal shutoff sensing ring providing excess flow limiting and fire safe shutoff. The plunger limits gas flow in the event of a gas appliance connector rupture or disconnect and then automatically resets, while the thermal ring expands to stop gas flow when the valve reaches 350° F to 425° F.
