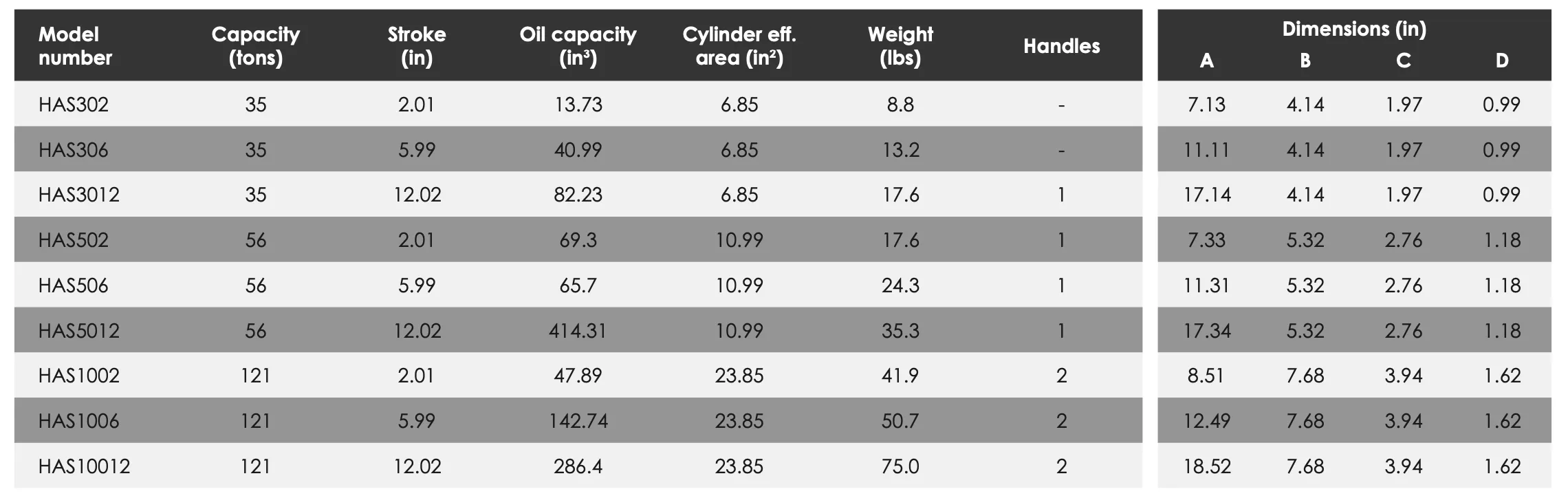

• Capacities from 35 to 121 tons.
• Stroke lengths from 2.01 to 12.02 inches.
• Working pressure 10,000 psi.

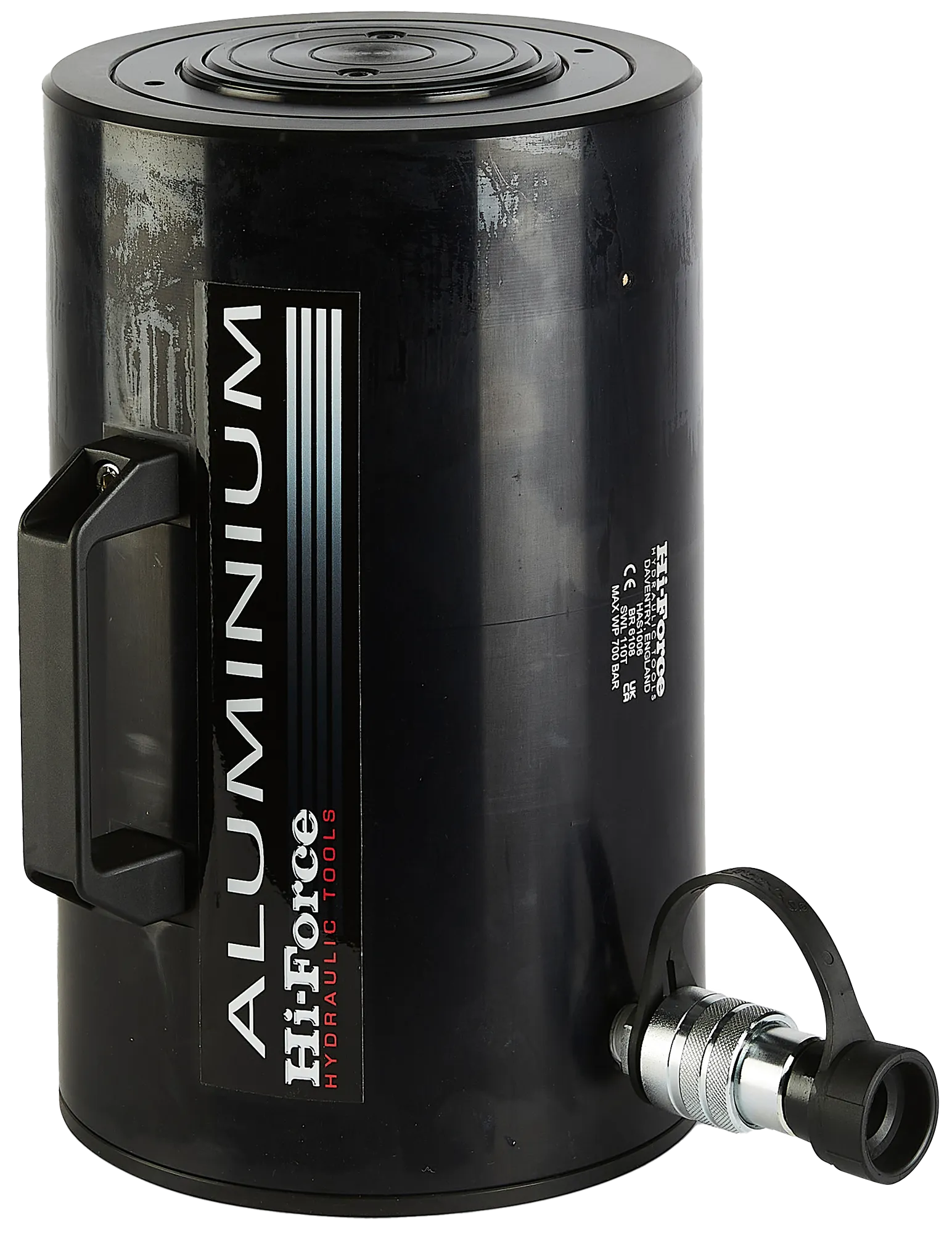

Lightweight aluminum cylinders for applications where weight and portability are of prime importance. Single acting, spring assisted return. Hard anodized piston rod and cylinder for corrosion resistance and increased durability. Steel base plate to protect cylinder body. Low friction bearing surfaces. Anti-extrusion seals for improved performance at high pressures. Grooved saddles fitted as standard on all models.

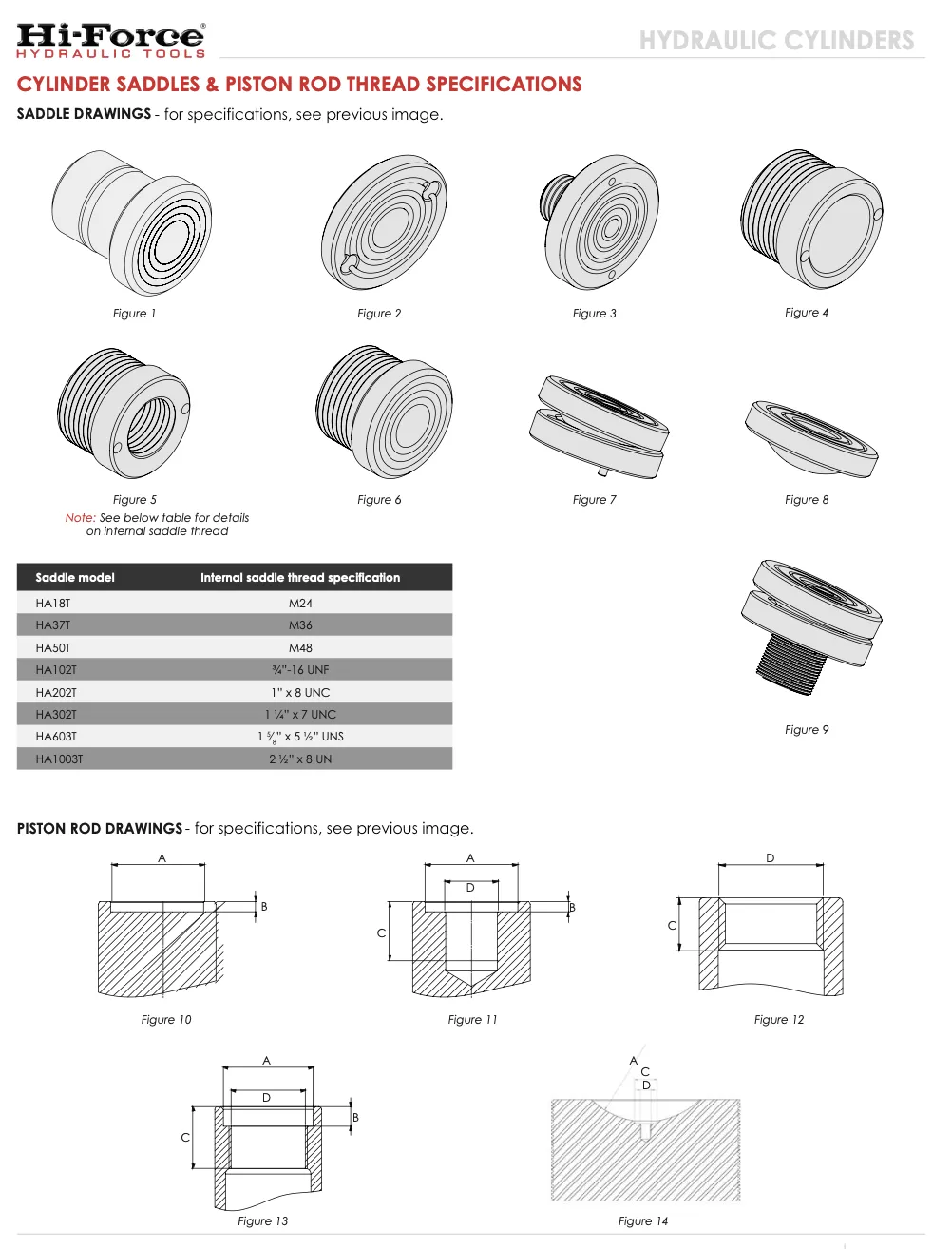

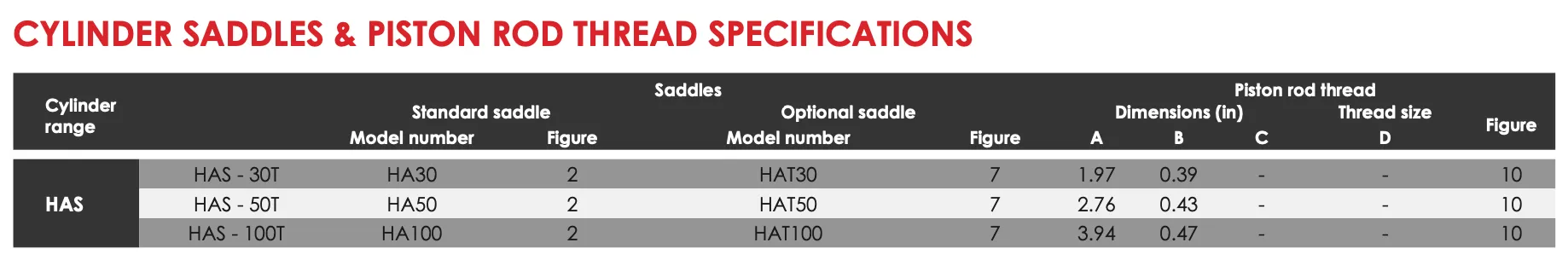

Optional piston rod saddles. Customized and special design cylinders are available on request.

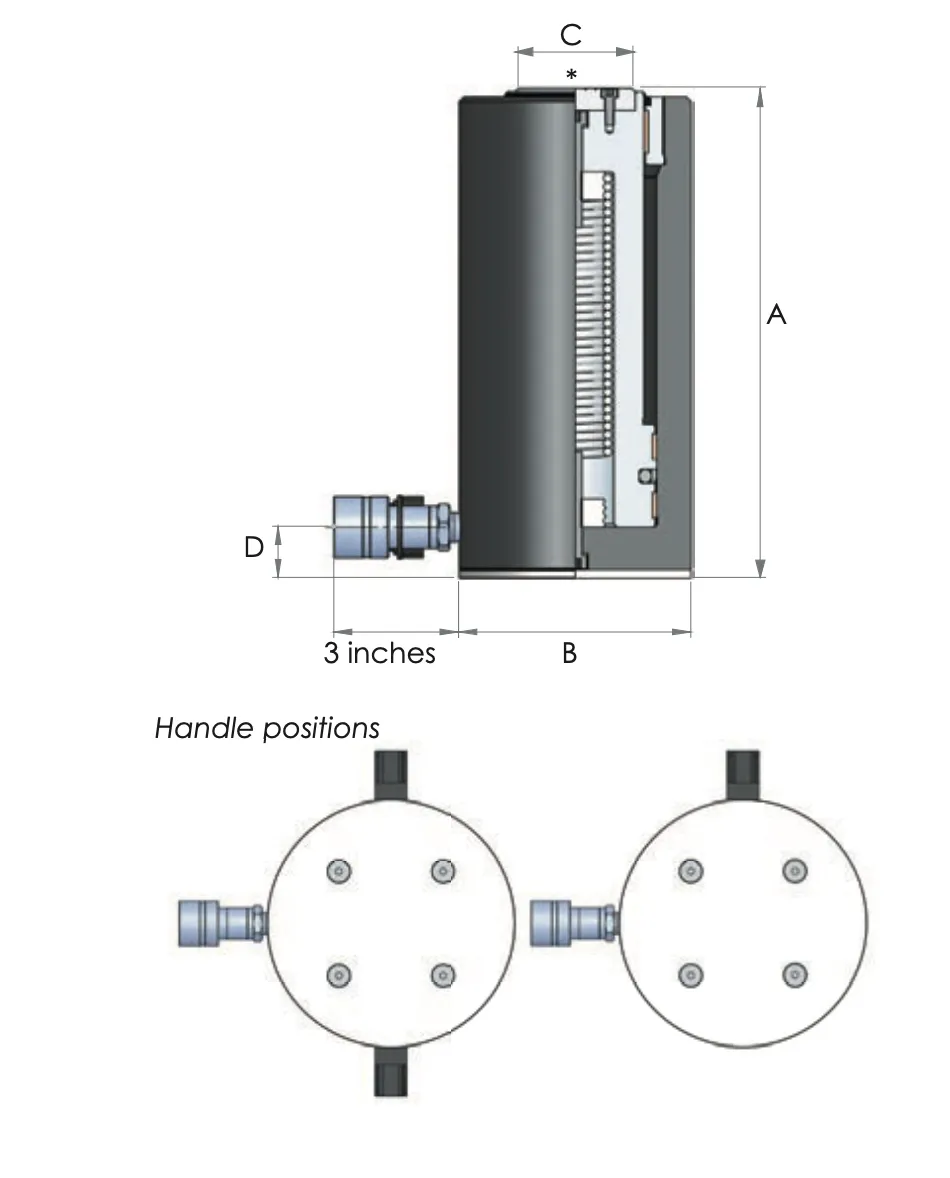

If specifying this cylinder for use with the SLF and SLV synchronous lifting systems and associated mounting kit, please consider the increase in dimension A (closed height).
