- Classic Gasoline Horizontal Engine: It adopts water-cooled cooling structure and uses adjustable speed carburetor. It is carefully crafted from brass and stainless steel.You will love this retro and exquisite gasoline engine model.
- Excellent performance: The engine is unique and exquisite in shape, stable and reliable in structural design, high in quality, excellent in craftsmanship, and stable in performance. This is a very distinctive desktop model engine, simple and fun to operate, you will feel the unique charm brought by the engines mechanical operation.
- Engine Startup Steps: 1. Check the engine wiring from the wooden base, then connect the fuel tank oil pipe, and install 3 AA batteries (4.5V). 2. Fill the fuel tank with 95 gasoline and 4% lubricating oil. After filling, rotate the flywheel clockwise several times on the right side of the engine, which makes the mixed fuel completely enter the cylinder to ensure no air in the fuel pipe. 3. Switch it on and quickly turn the flywheel clockwise.
- Best Gifts: This stunning mechanical craft allows you to feel the allure of the engine when working, suitable for personal use and an impressive gift to friends, families and model lovers on major festivals.
- Note: (1) If the ignition device is normal and the cylinder is normal, and the machine cannot start normally, it is likely to need to adjust the carburetor oil needle; (2) After tightening the main oil needle on the carburetor, loosen 1/4 Circle and start the flywheel to make the mixing ratio of gasoline and air reach the normal working mixing ratio; (3) When the machine stops running, turn off the power switch.

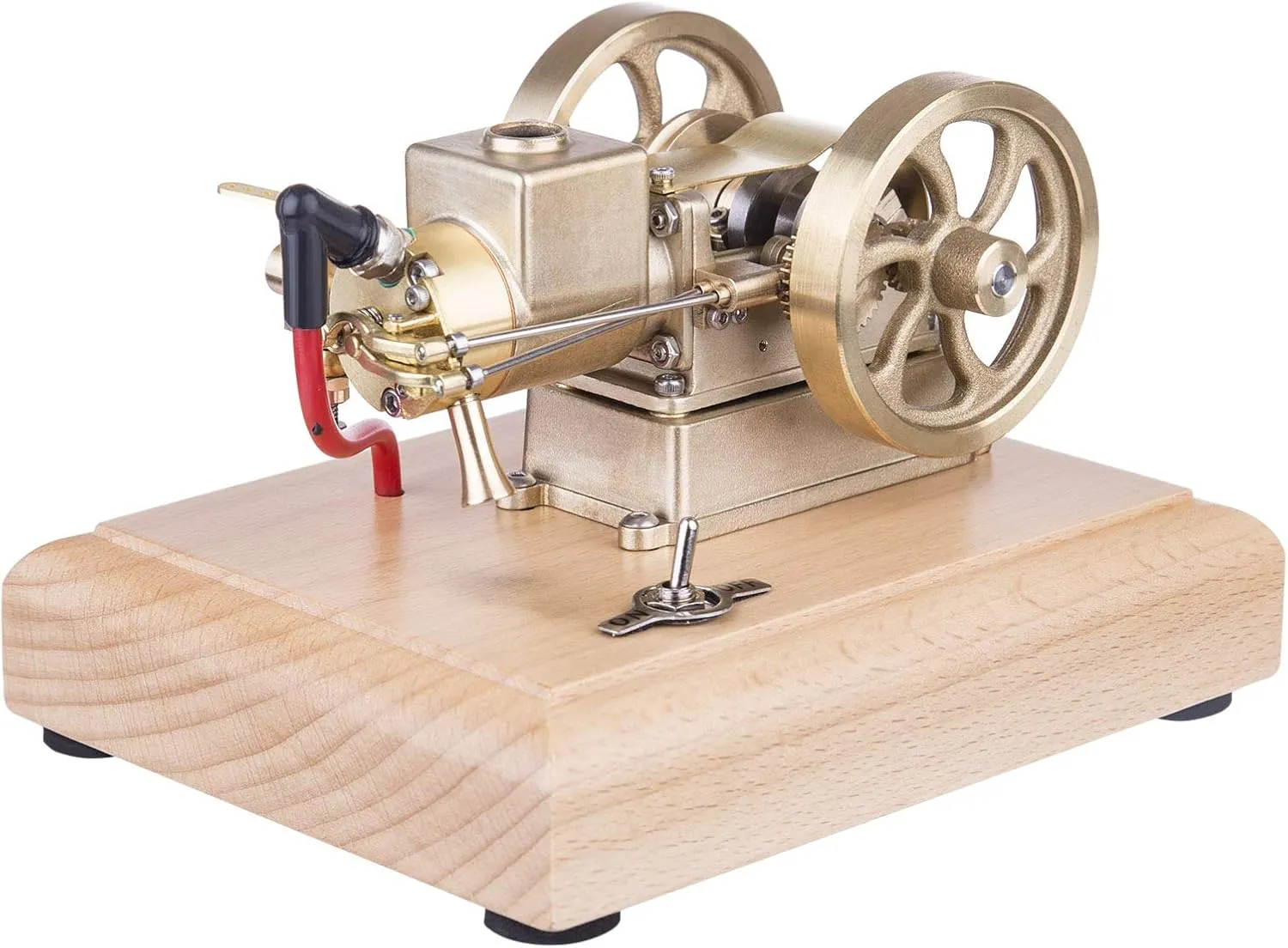

Metal Adjustable Speed Micro Horizontal Water-cooled Gasoline Engine Internal Combustion Engine Model. This is a miniature engine with a water-cooled structure and an adjustable speed carburetor. Made of brass and stainless steel. Wooden base for easy placement and operation. You will love this exquisite retro mini internal combustion engine.
Specifications:
.Material: Brass Stainless Steel Wood
.Displacement: 1.6cc
.Cylinder Diameter: 13mm
.Stroke: 12mm
.Power Supply Voltage of Ignition Device: 4.5V (3-cell AA Batteries Needed but Not Included)
.Start Mode: External Force (Electric Drill) or Manual
.Whole Size: 150 x 120 x 95mm
.Engine Size: 127 x 78 x 65mm
.Wood Base: 150 x 120 x 30mm
.Product Weight: 1100g
.Package Dimensions: 20 x 20 x 15cm
.Package Weight: 1500g
.Packing: Box
Package Content:
.1 x Engine
.1 x User Guide
