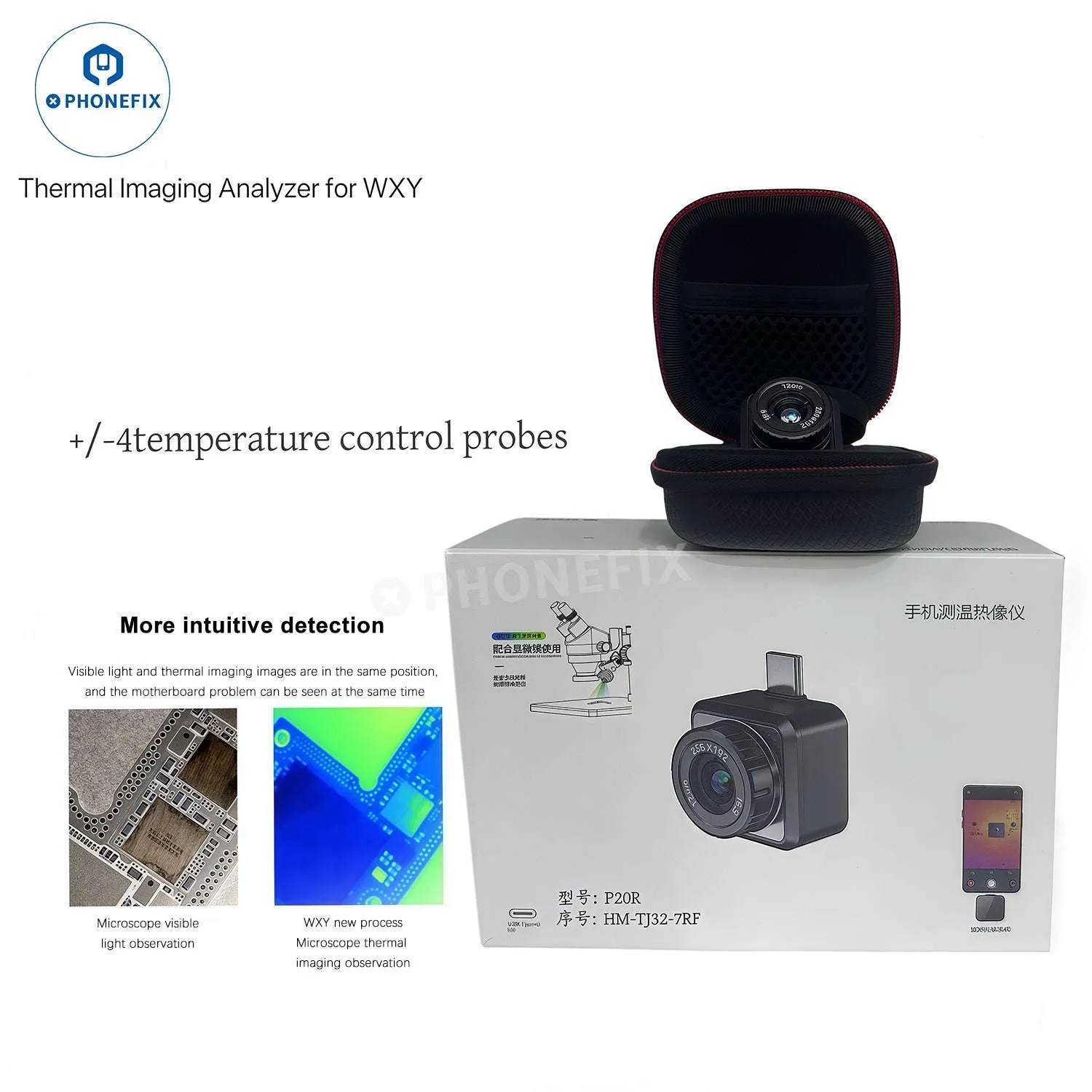

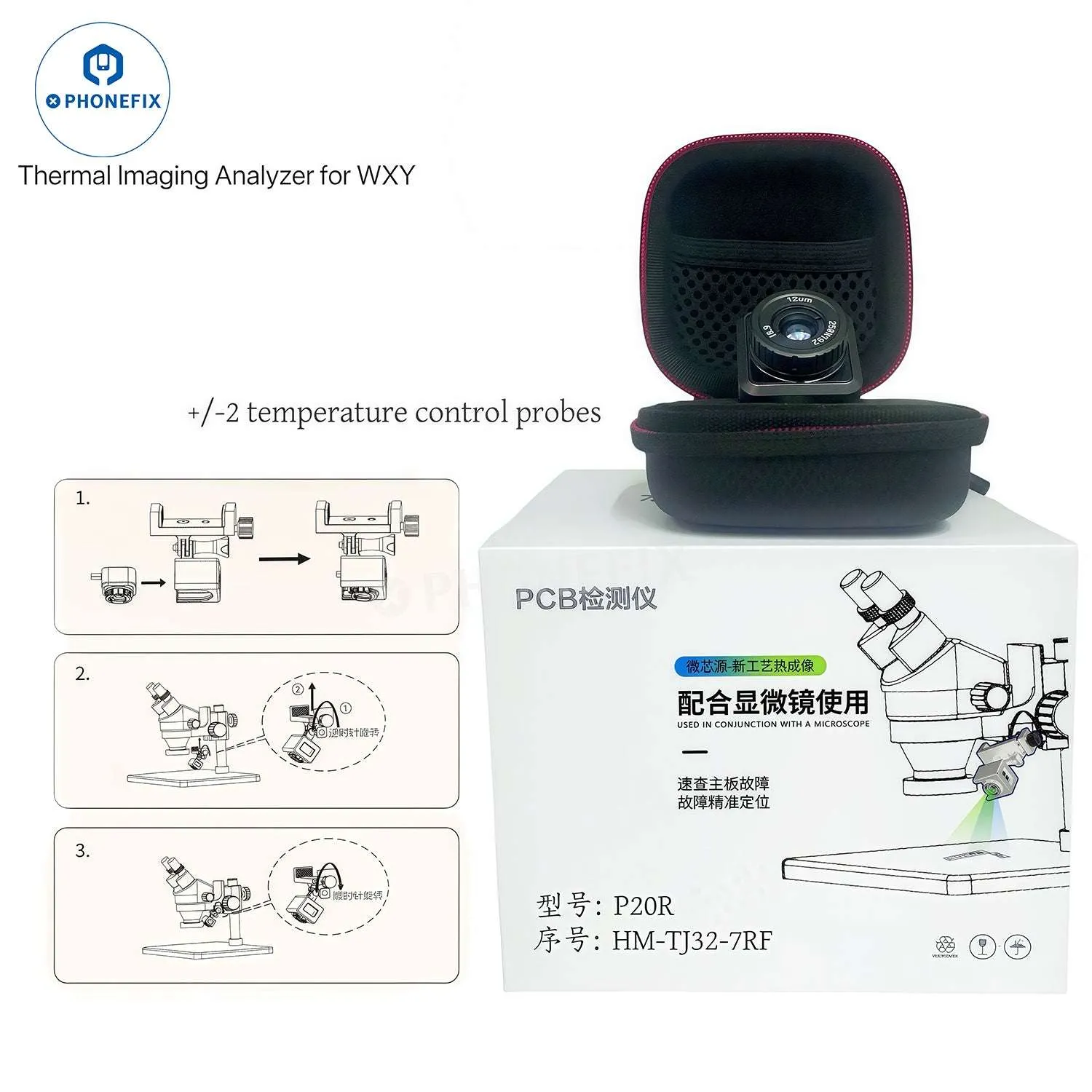

WXY P20R 512x384 high resolution thermal camera analyzer 256*192 high definition thermal imaging for mobile phone motherboard BGA fault rapid detection. WXY HM-TJ32-7RF thermal camera equipped with /-2 and /-4 temperature control detectors, can be used with the microscope to quickly locate the motherboard fault and achieve accurate repair.

Features:
1. Accurate temperature control detection: equipped with /-2 and /-4 temperature control detectors, which can accurately sense temperature changes.

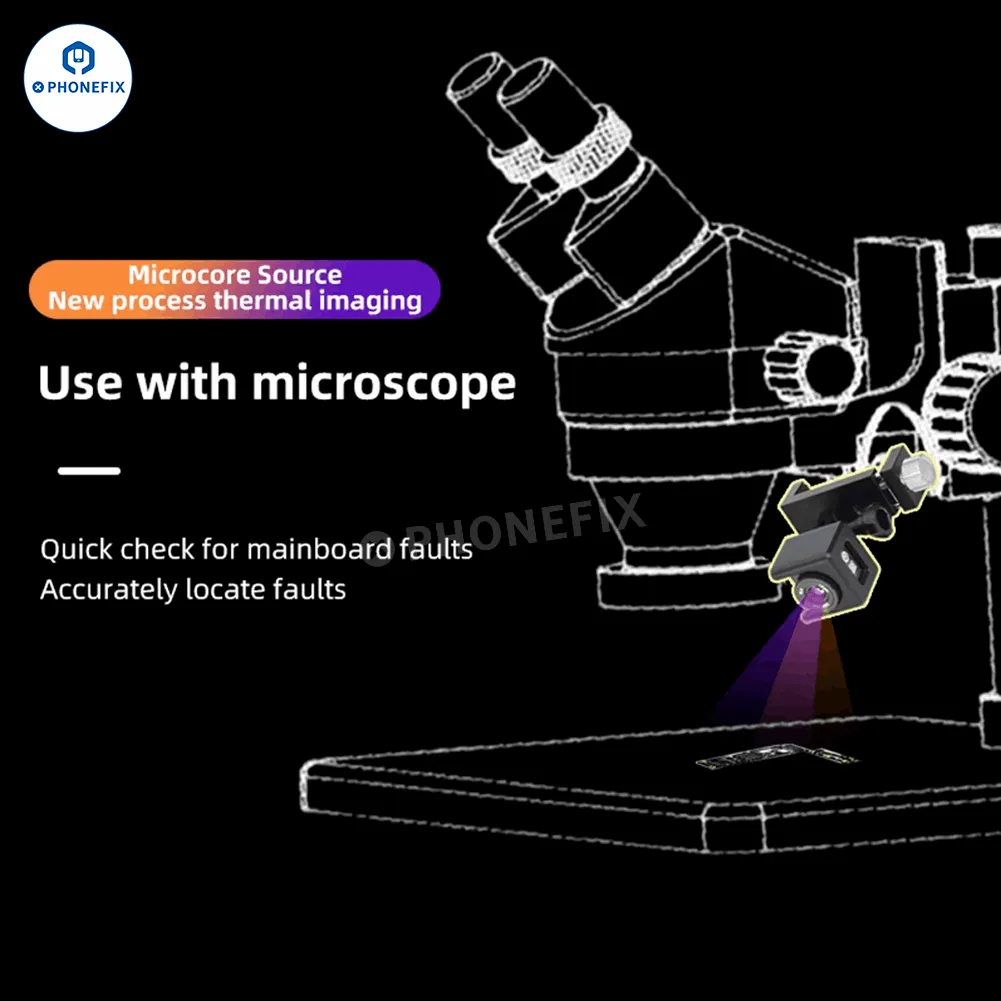

2. Quick motherboard fault check: can quickly locate the motherboard fault, and use with a microscope to facilitate accurate repair.

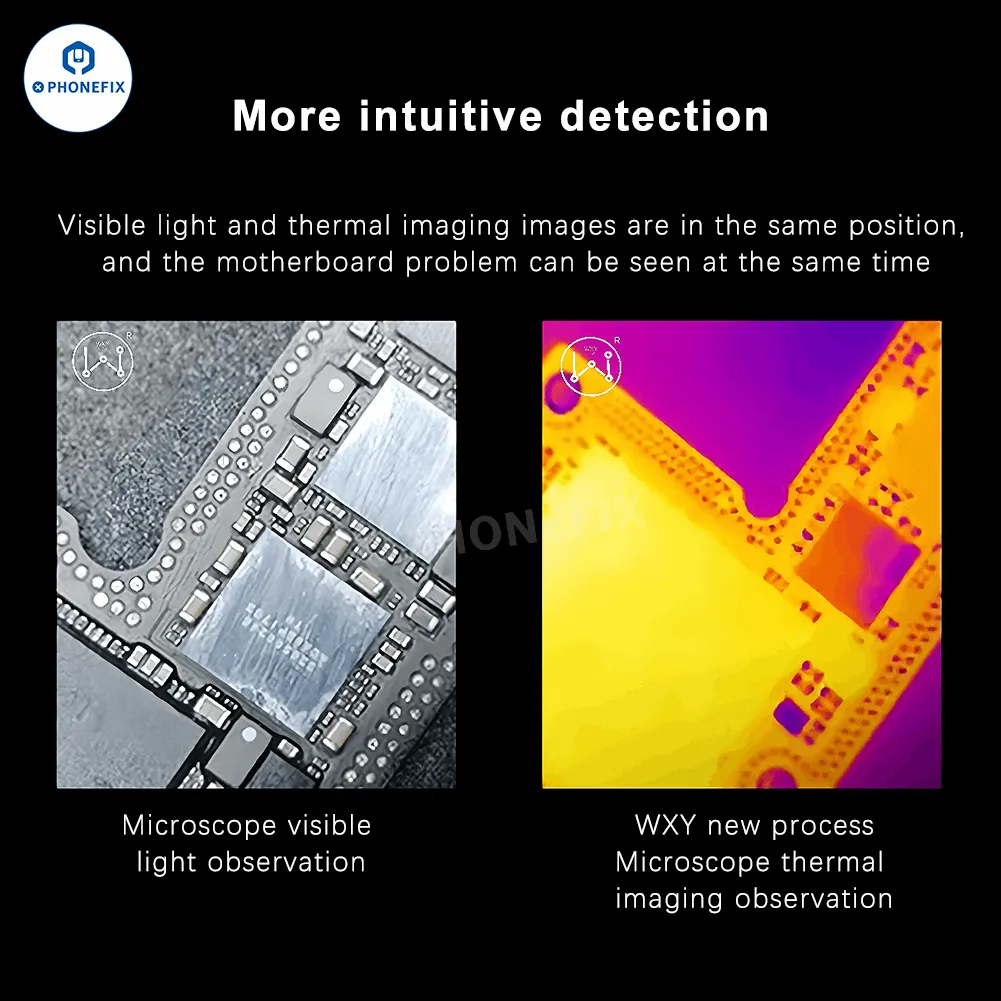

3. Intuitive detection effect: visible light and thermal imaging images can be displayed in the same position, and the motherboard problem is clear at a glance.
4. 3D noise reduction and image enhancement: supports 3D noise reduction function, has image detail enhancement function, and improves image quality.
5. Automatic tracking of high temperature points: automatically tracks high temperature points to facilitate focus on key areas.

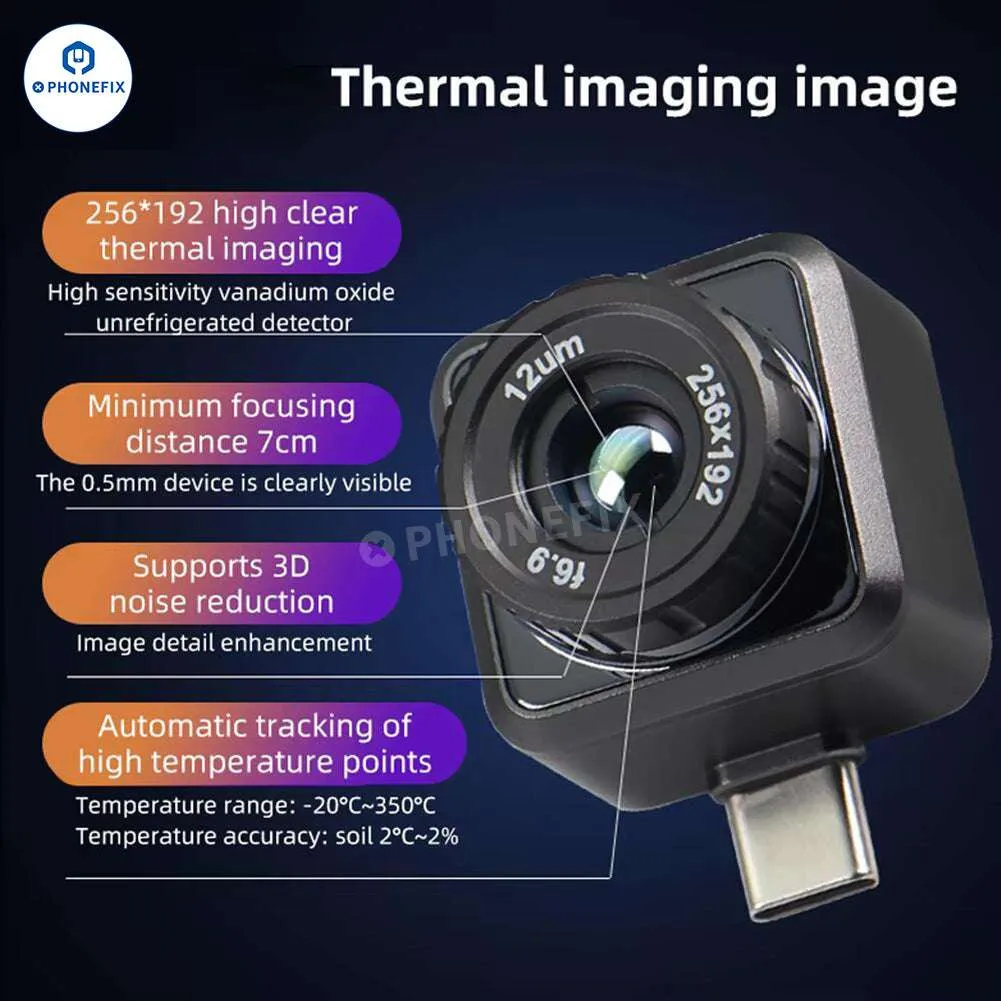

6. High-resolution imaging: It has super resolution 512X384, 256*192 high-definition thermal imaging, and uses a high-sensitivity vanadium oxide uncooled detector.
7. Short-distance focusing: The minimum focusing distance is 7cm, and 0.5mm devices can be clearly displayed.

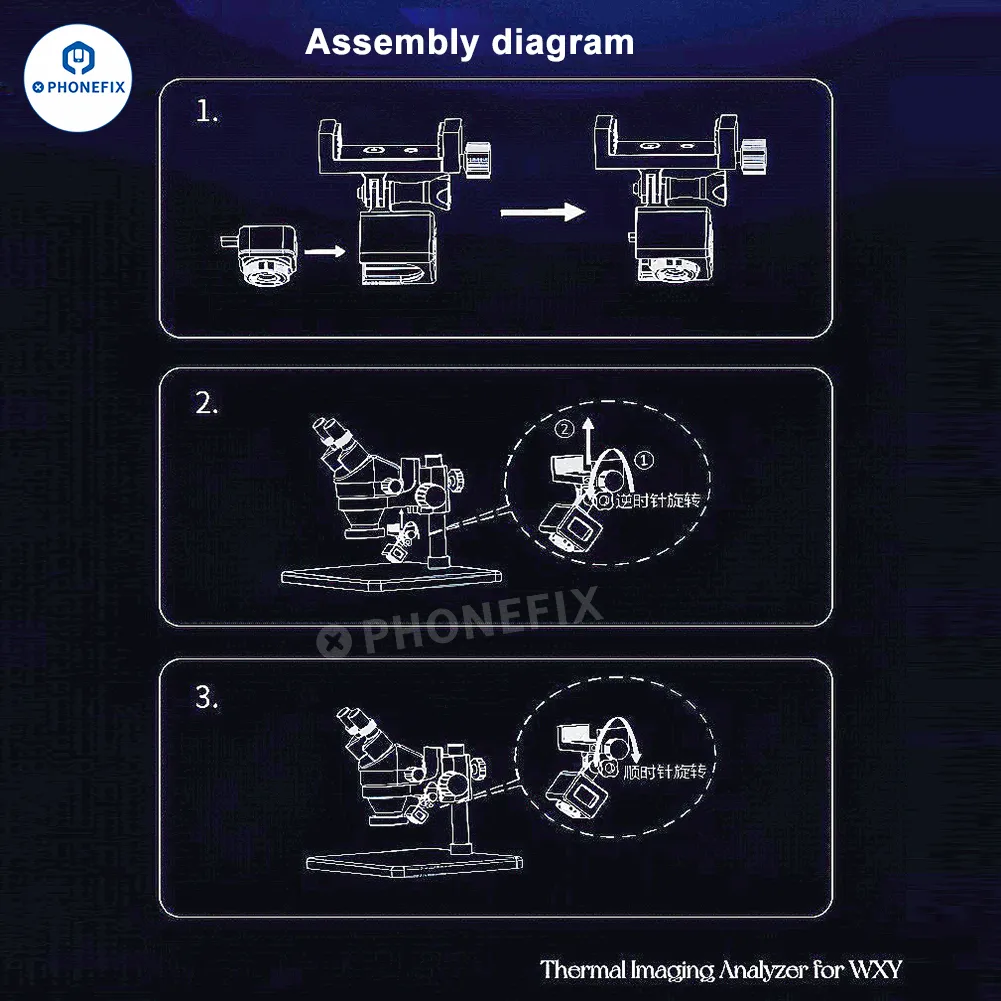

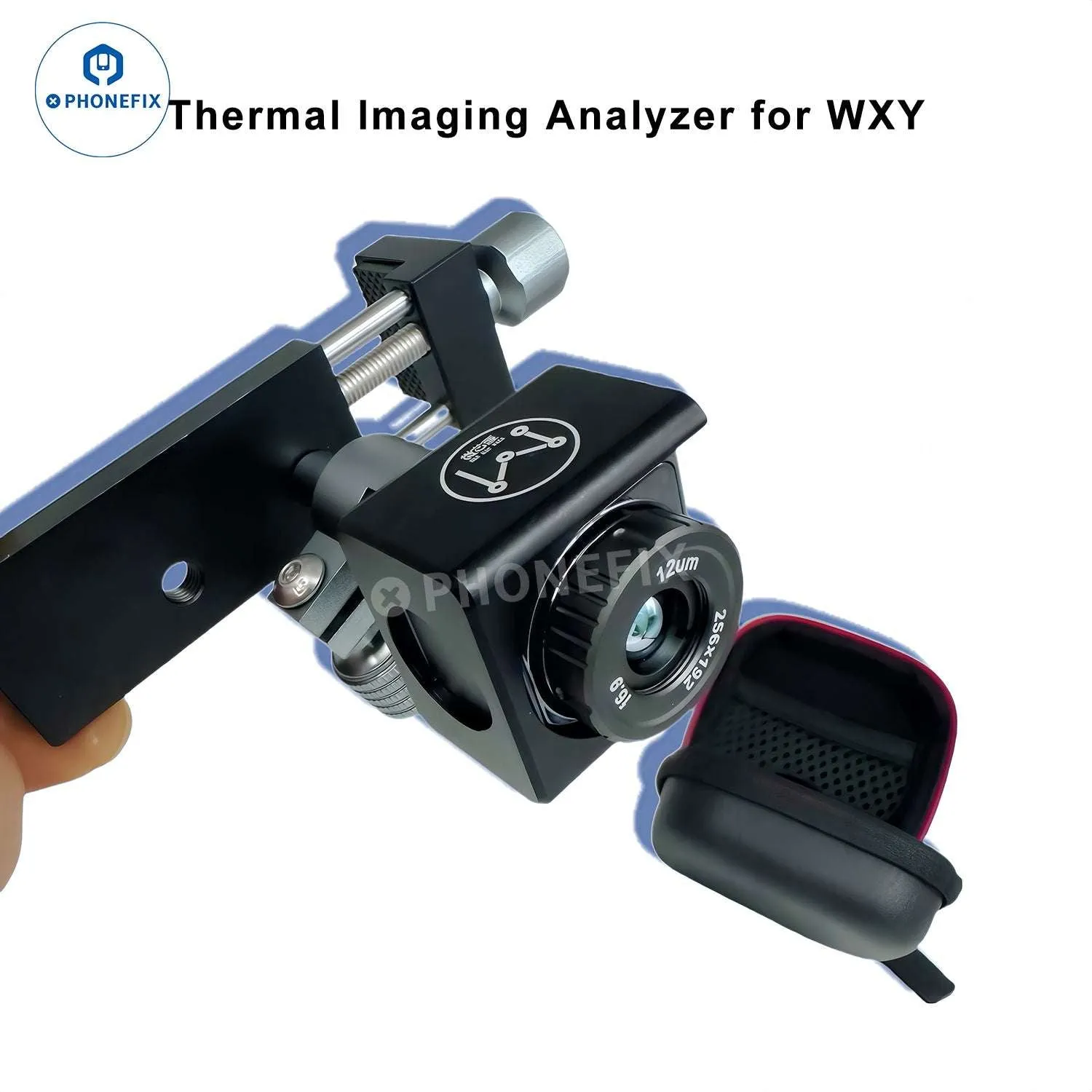

8. Convenient carrying and support: There is a thermal imaging storage bag for easy carrying, and the thermal imaging bracket can be installed on the microscope bracket.

Parameters:
Model: WXY P20R HM-TJ32-7RF thermal imager camera.
Super resolution: 512X384.
Name: WXY new process thermal imaging.
Temperature measurement range: -20°C~350°C.
Packing size: 112*105*92mm.
Temperature measurement accuracy: ±2°C~±4.

Packing List:
1X Thermal Imaging Host.
1X Storage Bag.
1X Stand.
1X Type C3.0 Phone Data Cable 1.5m.
1X Type C3.0 Computer Data Cable 1.5m.
